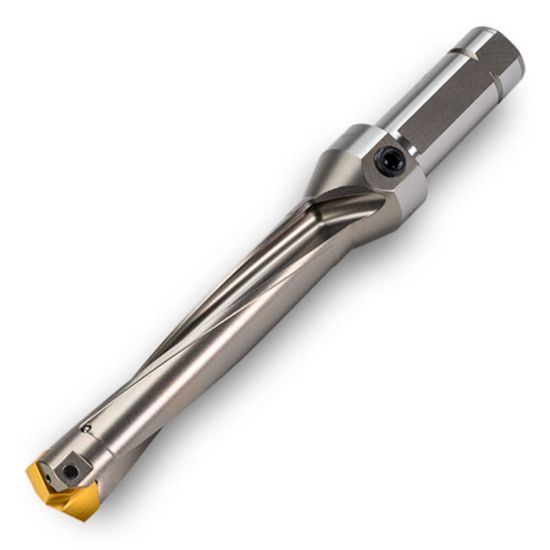

INGERSOLL LD3700185N6R01 1.4567 (37.0 mm)-1.4921 (37.9 mm) SpadeTwist Body

ISO: LD3700185N6R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6146035
Delivery date: 3-5 days
$830.67

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Single Insert Drilling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Machine Side Connection Size 1.2500 31.75MM
Cut Dia Min 1.4567 37.00MM
Cut Dia Max 1.4920 37.90MM
Tool Material Carbide
Cutter Dia 1.4567 37.00MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Dia Deep 5.0XD
Flutes/Inserts 2
Flute Length 7.5200 191.01MM
Included Angle 140°
Machine Side Connection Type Boring Bar,Weldon
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
