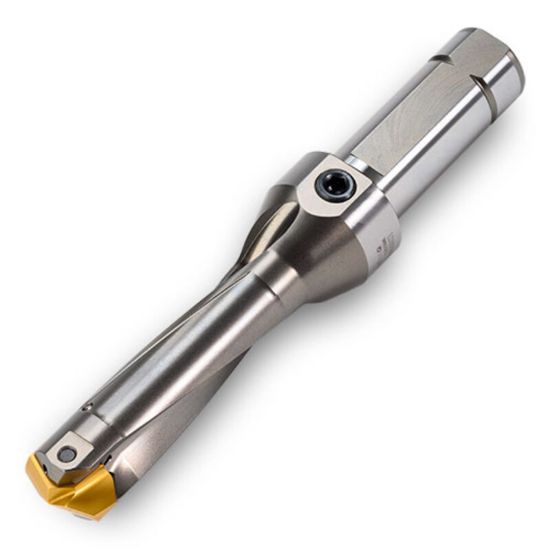

INGERSOLL LD3700111N6R01 1.4567 (37.0 mm)-1.4921 (37.9 mm) SpadeTwist Body

ISO: LD3700111N6R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6146020
Delivery date: 3-5 days
$702.80

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Single Insert Drilling, Drilling
Made In USA No
Package Size 1
Shipping State Illinois
Dimensional Specifications
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutter Dia 1.4567 37.00MM
Cut Dia Max 1.4920 37.90MM
Tool Material Carbide
Included Angle 140°
Cut Dia Min 1.4567 37.00MM
Dia Deep 3.0XD
Flute Length 4.5300 115.06MM
Machine Side Connection Type Boring Bar,Weldon
Flutes/Inserts 2
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
