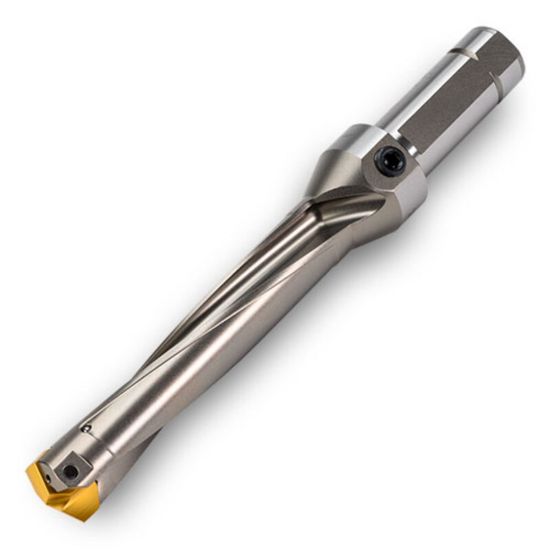

INGERSOLL LD3100155N6R01 1.2205 (31.0 mm)-1.2559 (31.9 mm) SpadeTwist Body

ISO: LD3100155N6R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6146029
Delivery date: 3-5 days
$798.00

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Single Insert Drilling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Flute Length 6.3000 160.02MM
Machine Side Connection Type Boring Bar,Weldon
Flutes/Inserts 2
Included Angle 140°
Tool Material Carbide
Machine Side Connection Size 1.2500 31.75MM
Cut Dia Min 1.2205 31.00MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Dia Deep 5.0XD
Cutter Dia 1.2205 31.00MM
Cut Dia Max 1.2559 31.90MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
