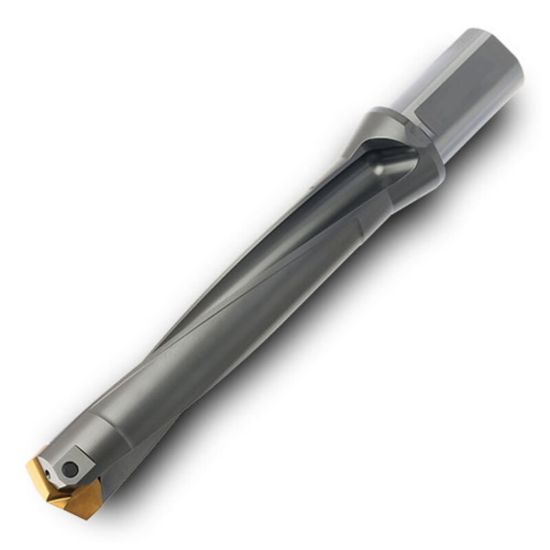

INGERSOLL LD2700216JGR00 1.0630 (27.0 mm)-1.0984 (27.9 mm) SpadeTwist Body

ISO: LD2700216JGR00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6185608
Delivery date: 3-5 days
$811.07

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Single Insert Drilling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Cutter Dia 1.0630 27.00MM
Machine Side Connection Size 1.2598 32.00MM
Dia Deep 8.0XD
Included Angle 140°
Tool Material Carbide
Machine Side Connection Type Cylindrical
Flute Length 8.6700 220.22MM
Cut Dia Min 1.0630 27.00MM
Shank/Pilot Dia 1.2598 32.00MM
Flutes/Inserts 2
Cut Dia Max 1.0984 27.90MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
