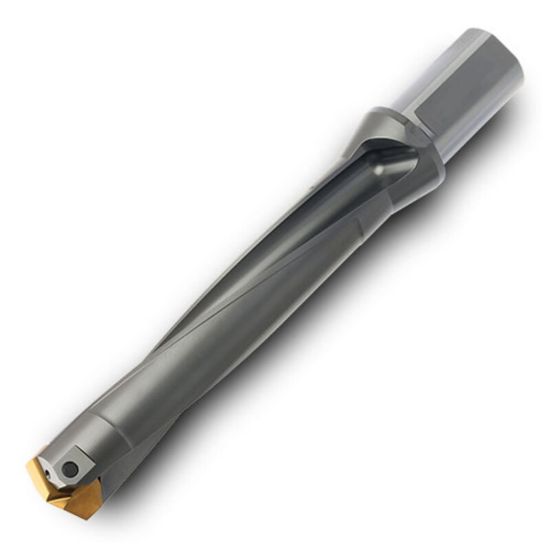

INGERSOLL LD2600130JGR00 1.0236 (26.0 mm)-1.0591 (26.9 mm) SpadeTwist Body

ISO: LD2600130JGR00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3204835
Delivery date: 3-5 days
$674.80

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Application Drilling, Single Insert Drilling
Made In USA No
Package Size 1
Dimensional Specifications
Tool Material Carbide
Flute Length 5.2770 134.04MM
Cut Dia Max 1.0591 26.90MM
Machine Side Connection Size 1.2598 32.00MM
Included Angle 140°
Cutter Dia 1.0240 26.01MM
Dia Deep 5.0XD
Cut Dia Min 1.0240 26.01MM
Shank/Pilot Dia 1.2598 32.00MM
Flutes/Inserts 2
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
