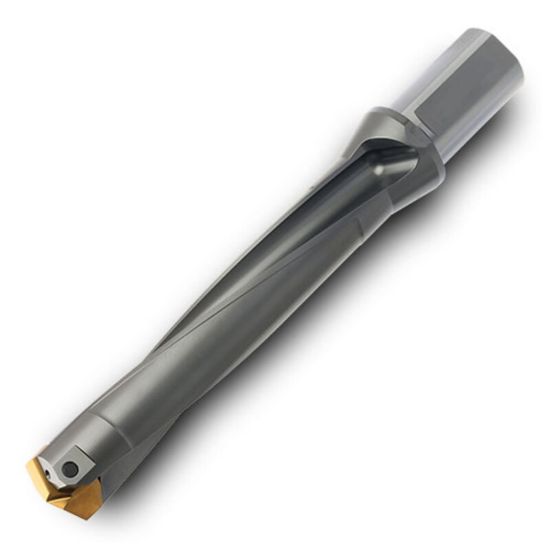

INGERSOLL LD2500200JGR00 0.9843 (25.0 mm)-1.0197 (25.9 mm) SpadeTwist Body

ISO: LD2500200JGR00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6192292
Delivery date: 3-5 days
$810.13

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Single Insert Drilling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Machine Side Connection Size 1.2598 32.00MM
Dia Deep 8.0XD
Flutes/Inserts 2
Included Angle 140°
Cut Dia Min 0.9843 25.00MM - 63/64
Flute Length 8.0280 203.91MM
Cutter Dia 0.9844 25.00MM - 63/64
Cut Dia Max 1.0197 25.90MM
Shank/Pilot Dia 1.2598 32.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
