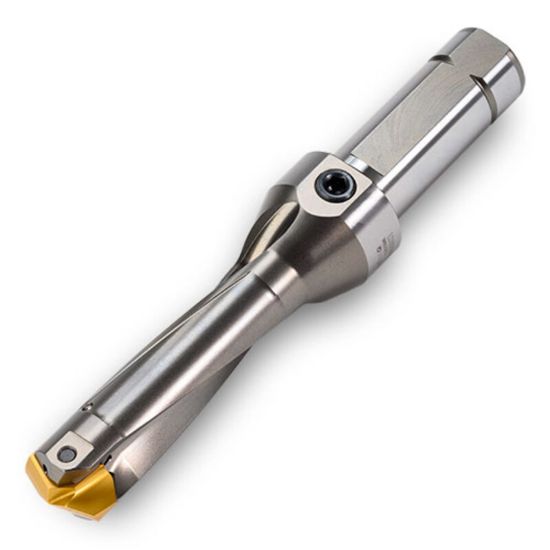

INGERSOLL LD2500075N6R01 0.9843 (25.0 mm)-1.0200 (25.9 mm) SpadeTwist Body

ISO: LD2500075N6R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6318298
Delivery date: 3-5 days
$571.20

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Single Insert Drilling, Drilling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Tool Material Carbide
Included Angle 140°
Dia Deep 3.0XD
Machine Side Connection Type Boring Bar,Weldon
Cutter Dia 0.9844 25.00MM - 63/64
Cut Dia Max 1.0197 25.90MM
Flutes/Inserts 2
Flute Length 3.1100 78.99MM
Cut Dia Min 0.9843 25.00MM - 63/64
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
