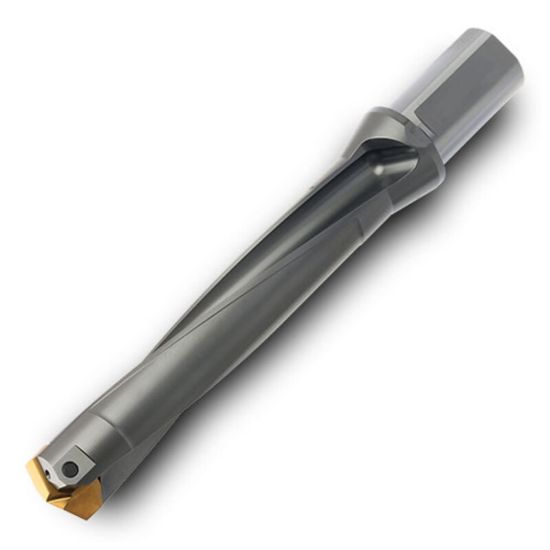

INGERSOLL LD2400192JGR00 0.9449 (24.0 mm)-0.9803 (24.9 mm) SpadeTwist Body

ISO: LD2400192JGR00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6192291
Delivery date: 3-5 days
$724.27

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Single Insert Drilling, Drilling
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Dia Max 0.9803 24.90MM
Shank/Pilot Dia 1.2598 32.00MM
Cutter Dia 0.9449 24.00MM
Cut Dia Min 0.9449 24.00MM
Machine Side Connection Size 1.2598 32.00MM
Flutes/Inserts 2
Dia Deep 8.0XD
Included Angle 140°
Flute Length 7.7060 195.73MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
