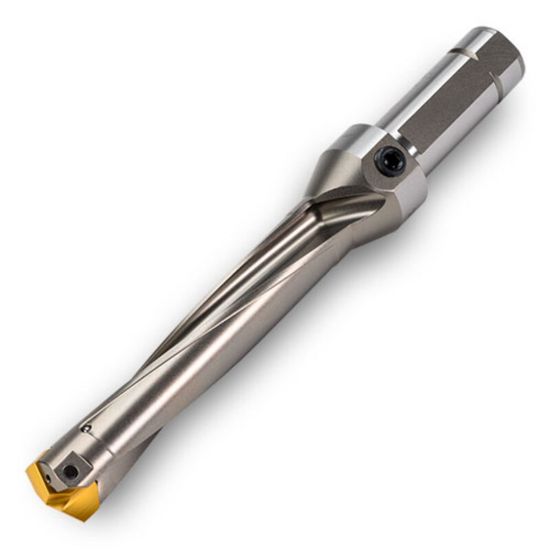

INGERSOLL LD2400120N6R01 0.9448 (24.0 mm)-0.9803 (24.9 mm) SpadeTwist Body

ISO: LD2400120N6R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6318303
Delivery date: 3-5 days
$603.87

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Illinois
Application Single Insert Drilling, Drilling
Made In USA No
Dimensional Specifications
Cut Dia Max 0.9803 24.90MM
Machine Side Connection Size 1.2500 31.75MM
Machine Side Connection Type Boring Bar,Weldon
Tool Material Carbide
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Dia Deep 5.0XD
Cutter Dia 0.9449 24.00MM
Cut Dia Min 0.9449 24.00MM
Flutes/Inserts 2
Flute Length 4.8700 123.70MM
Included Angle 140°
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
