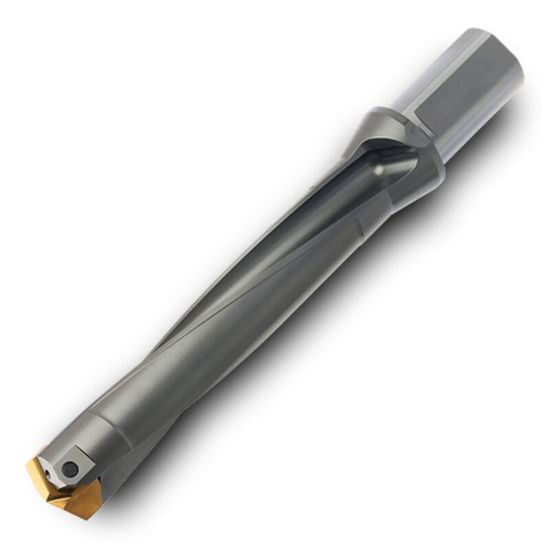

INGERSOLL LD2300115JFR00 0.9055 (23.0 mm)-0.9409 (23.9 mm) SpadeTwist Body

ISO: LD2300115JFR00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6176928
Delivery date: 3-5 days
$603.87

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Single Insert Drilling, Drilling
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Dia Max 0.9409 23.90MM
Flutes/Inserts 2
Dia Deep 5.0XD
Flute Length 4.6690 118.59MM
Cut Dia Min 0.9055 23.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.9843 25.00MM
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Included Angle 140°
Cutter Dia 0.9055 23.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
