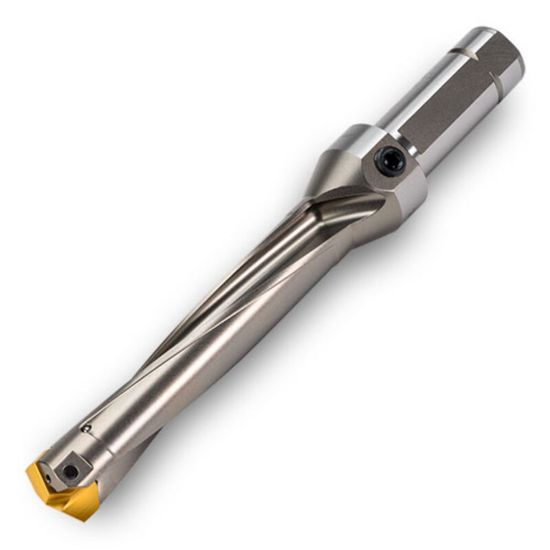

INGERSOLL LD2200110N5R01 0.8661 (22.0 mm)-0.9016 (22.9 mm) SpadeTwist Body

ISO: LD2200110N5R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6318301
Delivery date: 3-5 days
$546.00

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Single Insert Drilling, Drilling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Flute Length 4.4700 113.54MM
Machine Side Connection Type Boring Bar,Weldon
Cutter Dia 0.8661 22.00MM
Cut Dia Max 0.9016 22.90MM
Dia Deep 5.0XD
Cut Dia Min 0.8661 22.00MM
Flutes/Inserts 2
Included Angle 140°
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
