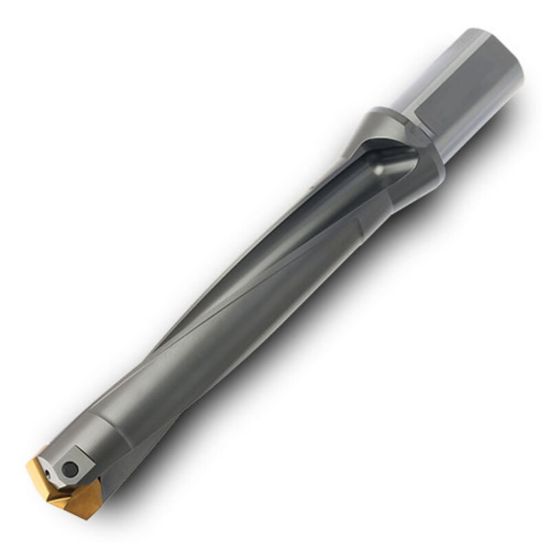

INGERSOLL LD2100063JFR00 0.8268 (21.0 mm)-0.8622 (21.9 mm) SpadeTwist Body

ISO: LD2100063JFR00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6192333
Delivery date: 3-5 days
$462.93

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Application Single Insert Drilling, Drilling
Package Size 1
Made In USA No
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Cylindrical
Dia Deep 3.0XD
Machine Side Connection Size 0.9843 25.00MM
Flute Length 2.6100 66.29MM
Cutter Dia 0.8268 21.00MM
Cut Dia Min 0.8268 21.00MM
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Flutes/Inserts 2
Included Angle 140°
Cut Dia Max 0.8622 21.90MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
