  • INGERSOLL KJ6P160R00 Milling Cutter 90.0° 6.299 Shell Arbor 1.5748 9 Flute 0.5906 Max DOC 2.480 OAL

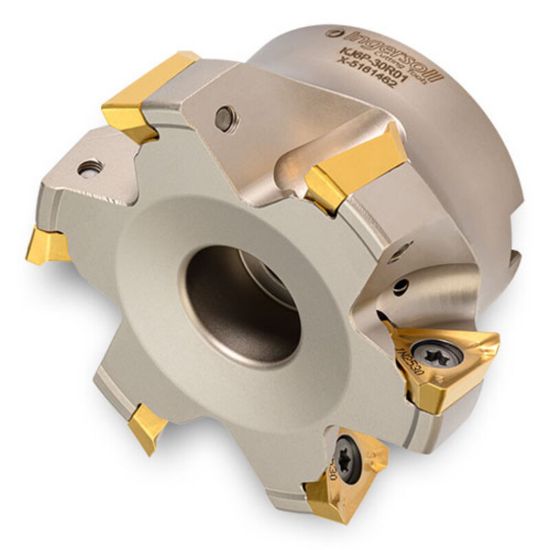

Picture of INGERSOLL KJ6P160R00 Milling Cutter 90.0° 6.299 Shell Arbor 1.5748 9 Flute 0.5906 Max DOC 2.480 OAL

INGERSOLL KJ6P160R00 Milling Cutter 90.0° 6.299 Shell Arbor 1.5748 9 Flute 0.5906 Max DOC 2.480 OAL

ANSI: KJ6P160R00

ISO: KJ6P160R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3057630
Delivery date: 3-5 days
$1,680.00
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Application Pocket Milling, Ramp Milling, Side Milling, Slot Milling, Face Milling
Made In USA No
Shipping State Illinois
Package Size 1
Insert Type Positive
Dimensional Specifications
Cut Dia Min 6.2990 159.99MM
Machine Side Connection Size 1.5748 40.00MM
Overall Len 2.4803 63.00MM
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.5906
Insert Size Ic 13
Cutter Dia 6.2990 159.99MM
Flutes/Inserts 9
Cutting & Machining Properties
Max Ramp Angle 0.60°
Coolant Thru No
Insert Style TH
Insert Shape/Cutter Pocket Shape Triangle
