  • INGERSOLL KJ6P080R00 Milling Cutter 90.0° 3.150 Shell Arbor 0.6300 5 Flute Coolant 0.5906 Max DOC 1.968 OAL

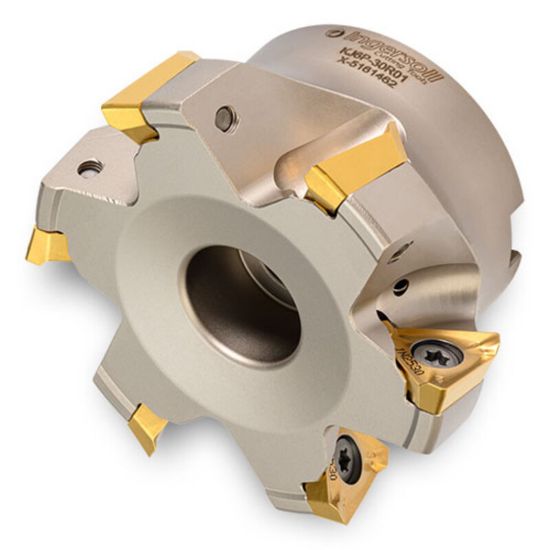

Picture of INGERSOLL KJ6P080R00 Milling Cutter 90.0° 3.150 Shell Arbor 0.6300 5 Flute Coolant 0.5906 Max DOC 1.968 OAL

INGERSOLL KJ6P080R00 Milling Cutter 90.0° 3.150 Shell Arbor 0.6300 5 Flute Coolant 0.5906 Max DOC 1.968 OAL

ANSI: KJ6P080R00

ISO: KJ6P080R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3057627
Delivery date: 3-5 days
$840.93
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Face Milling, Slot Milling, Ramp Milling, Side Milling
Shipping State Illinois
Insert Type Positive
Package Size 1
Insert Application Semi Finishing, Roughing
Made In USA No
Dimensional Specifications
Tool Material Steel
Flutes/Inserts 5
Cut Dia Min 3.1500 80.01MM
Machine Side Connection Size 0.6299 16.00MM
Insert Size Ic 13
Depth Of Cut Max 0.5906
Overall Len 1.9685 50.00MM
Cutter Dia 3.1500 80.01MM
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Max Ramp Angle 1.30°
Insert Shape/Cutter Pocket Shape Triangle
Coolant Thru Yes
Insert Style TH
