  • INGERSOLL KJ6P063R00 Milling Cutter 90.0° 2.480 Shell Arbor 0.8661 4 Flute Coolant 0.5906 Max DOC 1.574 OAL

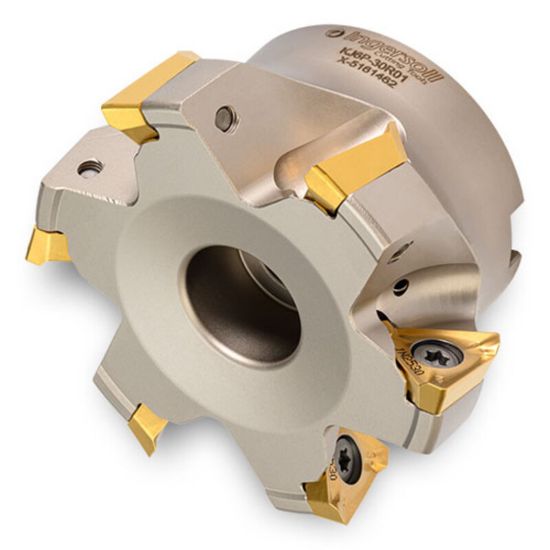

Picture of INGERSOLL KJ6P063R00 Milling Cutter 90.0° 2.480 Shell Arbor 0.8661 4 Flute Coolant 0.5906 Max DOC 1.574 OAL

INGERSOLL KJ6P063R00 Milling Cutter 90.0° 2.480 Shell Arbor 0.8661 4 Flute Coolant 0.5906 Max DOC 1.574 OAL

ANSI: KJ6P063R00

ISO: KJ6P063R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3057626
Delivery date: 3-5 days
$777.47
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Side Milling, Slot Milling, Pocket Milling, Face Milling
Insert/Tool Tool
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Insert Type Positive
Package Size 1
Dimensional Specifications
Cut Dia Min 2.4800 62.99MM
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Overall Len 1.5748 40.00MM
Insert Size Ic 13
Depth Of Cut Max 0.5906
Cutter Dia 2.4800 62.99MM
Flutes/Inserts 4
Cutting & Machining Properties
Max Ramp Angle 1.70°
Insert Style TH
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Triangle
