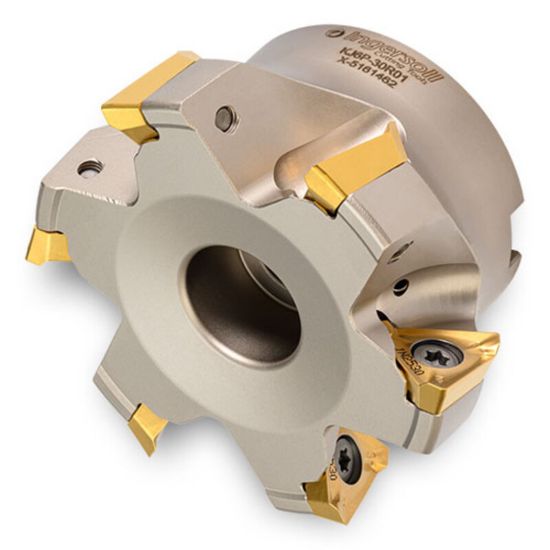

Picture of INGERSOLL KJ6P-65R01 Milling Cutter 90.0° 6.500 Shell Arbor 1.5000 10 Flute 0.57 Max DOC 2.000 OAL

INGERSOLL KJ6P-65R01 Milling Cutter 90.0° 6.500 Shell Arbor 1.5000 10 Flute 0.57 Max DOC 2.000 OAL

ANSI: KJ6P-65R01

ISO: KJ6P-65R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2922454
Delivery date: 3-5 days
$1,530.67

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Slot Milling, Side Milling, Pocket Milling, Face Milling
Made In USA No
Shipping State Illinois
Insert Application Roughing, Semi Finishing
Package Size 1
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Depth Of Cut Max 0.5700
Cutter Dia 6.5000 165.10MM
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Flutes/Inserts 10
Tool Material Steel
Insert Size Ic 13
Cut Dia Min 6.5000 165.10MM
Machine Side Connection Size 1.5000 38.10MM
Cutting & Machining Properties
Insert Style TH
Coolant Thru No
Max Ramp Angle 0.40°
Insert Shape/Cutter Pocket Shape Triangle
