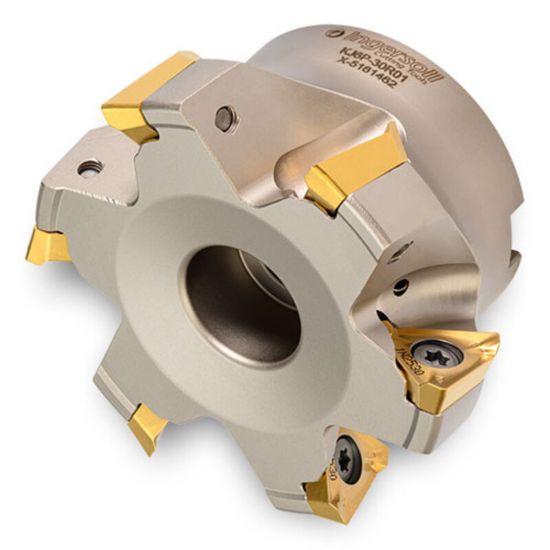

Picture of INGERSOLL KJ6P-50R01 Milling Cutter 90.0° 5.000 Shell Arbor 1.5000 9 Flute 0.57 Max DOC 2.000 OAL

INGERSOLL KJ6P-50R01 Milling Cutter 90.0° 5.000 Shell Arbor 1.5000 9 Flute 0.57 Max DOC 2.000 OAL

ANSI: KJ6P-50R01

ISO: KJ6P-50R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3031441
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Side Milling, Pocket Milling, Ramp Milling, Slot Milling, Face Milling
Made In USA No
Shipping State Illinois
Insert Type Positive
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Flutes/Inserts 9
Cut Dia Min 5.0000 127.00MM
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Depth Of Cut Max 0.5700
Insert Size Ic 13
Cutter Dia 5.0000 127.00MM
Machine Side Connection Size 1.5000 38.10MM
Tool Material Steel
Cutting & Machining Properties
Max Ramp Angle 0.50°
Coolant Thru No
Insert Style TH
Insert Shape/Cutter Pocket Shape Triangle
