  • INGERSOLL KJ6P-40R02 Milling Cutter 90.0° 4.000 Shell Arbor 1.5000 6 Flute Coolant 0.57 Max DOC 2.375 OAL

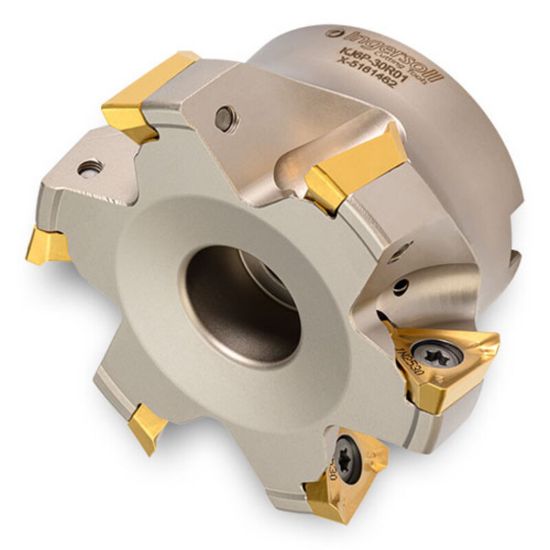

Picture of INGERSOLL KJ6P-40R02 Milling Cutter 90.0° 4.000 Shell Arbor 1.5000 6 Flute Coolant 0.57 Max DOC 2.375 OAL

INGERSOLL KJ6P-40R02 Milling Cutter 90.0° 4.000 Shell Arbor 1.5000 6 Flute Coolant 0.57 Max DOC 2.375 OAL

ANSI: KJ6P-40R02

ISO: KJ6P-40R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2926833
Delivery date: 3-5 days
$933.33

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Pocket Milling, Face Milling, Ramp Milling, Slot Milling, Side Milling
Shipping State Illinois
Package Size 1
Insert Application Semi Finishing, Roughing
Insert Type Positive
Made In USA No
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Insert Size Ic 13
Machine Side Connection Size 1.5000 38.10MM
Flutes/Inserts 6
Depth Of Cut Max 0.5700
Cutter Dia 4.0000 101.60MM
Overall Len 2.3750 60.33MM
Cut Dia Min 4.0000 101.60MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Max Ramp Angle 0.70°
Insert Style TH
Coolant Thru Yes
