  • INGERSOLL KJ6P-30R01 Milling Cutter 90.0° 3.000 Shell Arbor 1.0000 6 Flute Coolant 0.57 Max DOC 1.750 OAL

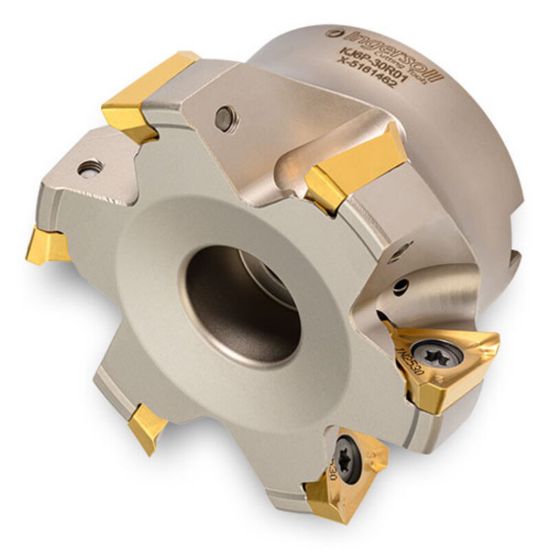

Picture of INGERSOLL KJ6P-30R01 Milling Cutter 90.0° 3.000 Shell Arbor 1.0000 6 Flute Coolant 0.57 Max DOC 1.750 OAL

INGERSOLL KJ6P-30R01 Milling Cutter 90.0° 3.000 Shell Arbor 1.0000 6 Flute Coolant 0.57 Max DOC 1.750 OAL

ANSI: KJ6P-30R01

ISO: KJ6P-30R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3031438
Delivery date: 3-5 days
$833.47

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Face Milling, Ramp Milling, Side Milling, Slot Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Insert Type Positive
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tool Material Steel
Flutes/Inserts 6
Depth Of Cut Max 0.5700
Machine Side Connection Size 1.0000 25.40MM
Insert Size Ic 13
Cut Dia Min 3.0000 76.20MM
Machine Side Connection Type Face Mill/Shell Mill
Cutter Dia 3.0000 76.20MM
Overall Len 1.7500 44.45MM
Cutting & Machining Properties
Max Ramp Angle 1.00°
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TH
Coolant Thru Yes
