  • INGERSOLL KJ6G050R00 Milling Cutter 90.0° 1.967 Shell Arbor 0.8661 4 Flute Coolant 0.4331 Max DOC 1.574 OAL

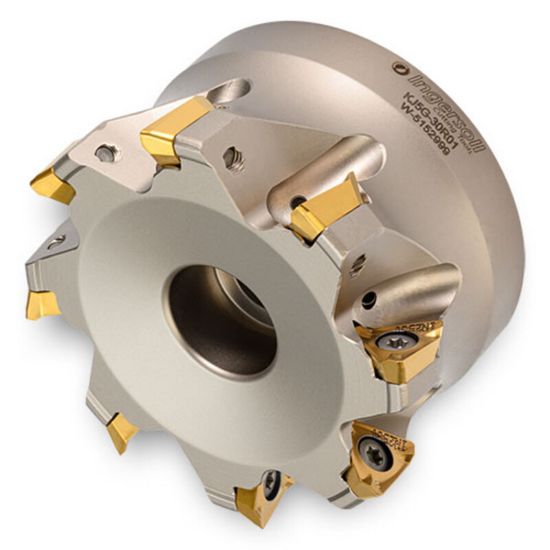

Picture of INGERSOLL KJ6G050R00 Milling Cutter 90.0° 1.967 Shell Arbor 0.8661 4 Flute Coolant 0.4331 Max DOC 1.574 OAL

INGERSOLL KJ6G050R00 Milling Cutter 90.0° 1.967 Shell Arbor 0.8661 4 Flute Coolant 0.4331 Max DOC 1.574 OAL

ANSI: KJ6G050R00

ISO: KJ6G050R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3057621
Delivery date: 3-5 days
$597.33
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Side Milling, Pocket Milling, Ramp Milling, Slot Milling
Insert Application Semi Finishing, Roughing
Package Size 1
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Cut Dia Min 1.9690 50.01MM
Flutes/Inserts 4
Cutter Dia 1.9670 49.96MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Overall Len 1.5748 40.00MM
Insert Size Ic 10
Depth Of Cut Max 0.4331
Tool Material Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Coolant Thru Yes
Insert Style TH
Max Ramp Angle 1.50°
