  • INGERSOLL KJ6G-30R01 Milling Cutter 90.0° 3.000 Shell Arbor 1.0000 5 Flute Coolant 0.41 Max DOC 1.750 OAL

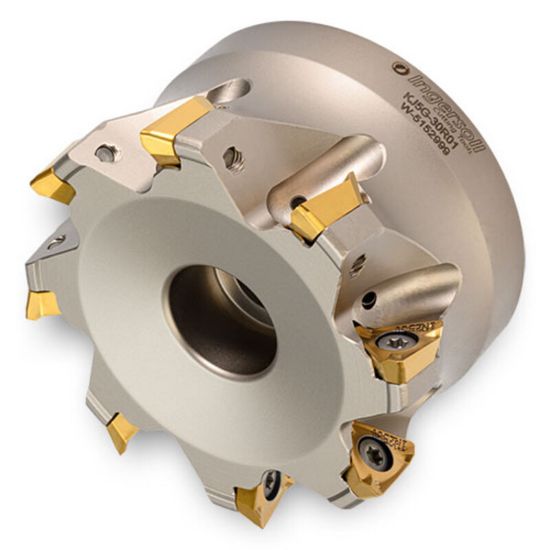

Picture of INGERSOLL KJ6G-30R01 Milling Cutter 90.0° 3.000 Shell Arbor 1.0000 5 Flute Coolant 0.41 Max DOC 1.750 OAL

INGERSOLL KJ6G-30R01 Milling Cutter 90.0° 3.000 Shell Arbor 1.0000 5 Flute Coolant 0.41 Max DOC 1.750 OAL

ANSI: KJ6G-30R01

ISO: KJ6G-30R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3031433
Delivery date: 3-5 days
$780.27

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Side Milling, Face Milling, Ramp Milling, Slot Milling, Pocket Milling
Insert Type Positive
Insert/Tool Tool
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Overall Len 1.7500 44.45MM
Insert Size Ic 10
Tool Material Steel
Flutes/Inserts 5
Depth Of Cut Max 0.4100
Cutter Dia 3.0000 76.20MM
Cut Dia Min 3.0000 76.20MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.0000 25.40MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Coolant Thru Yes
Max Ramp Angle 0.80°
Insert Style TH
