  • INGERSOLL KJ6G-15R01 Milling Cutter 90.0° 1.500 Shell Arbor 0.5000 4 Flute Coolant 0.41 Max DOC 1.375 OAL

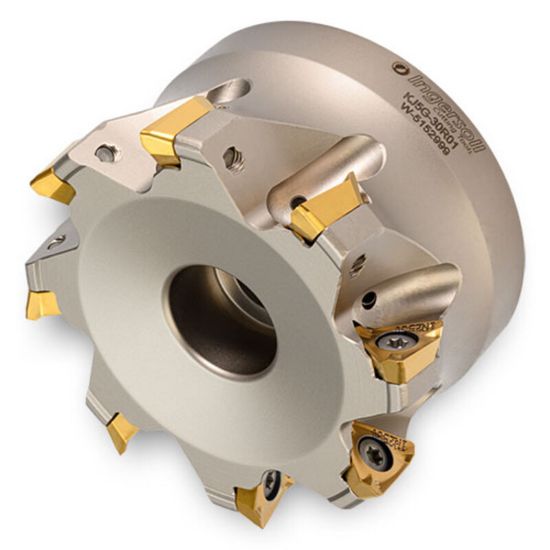

Picture of INGERSOLL KJ6G-15R01 Milling Cutter 90.0° 1.500 Shell Arbor 0.5000 4 Flute Coolant 0.41 Max DOC 1.375 OAL

INGERSOLL KJ6G-15R01 Milling Cutter 90.0° 1.500 Shell Arbor 0.5000 4 Flute Coolant 0.41 Max DOC 1.375 OAL

ANSI: KJ6G-15R01

ISO: KJ6G-15R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2917452
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Side Milling, Face Milling, Pocket Milling, Ramp Milling, Slot Milling
Package Size 1
Insert Type Positive
Insert/Tool Tool
Made In USA No
Shipping State Illinois
Dimensional Specifications
Flutes/Inserts 4
Cut Dia Min 1.5000 38.10MM - 1-1/2
Machine Side Connection Size 0.5000 12.70MM
Insert Size Ic 10
Tool Material Steel
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 1.3750 34.93MM
Depth Of Cut Max 0.4100
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Triangle
Max Ramp Angle 1.40°
Insert Style TH
