  • INGERSOLL KJ6D063R00 Milling Cutter 90.0° 2.480 Shell Arbor 0.8661 7 Flute Coolant 0.2756 Max DOC 1.574 OAL

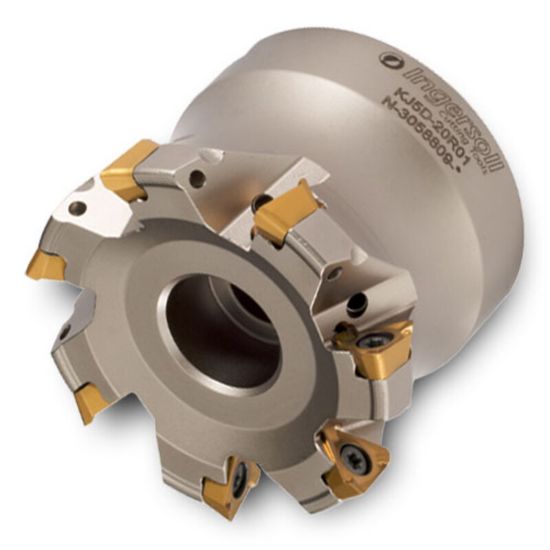

Picture of INGERSOLL KJ6D063R00 Milling Cutter 90.0° 2.480 Shell Arbor 0.8661 7 Flute Coolant 0.2756 Max DOC 1.574 OAL

INGERSOLL KJ6D063R00 Milling Cutter 90.0° 2.480 Shell Arbor 0.8661 7 Flute Coolant 0.2756 Max DOC 1.574 OAL

ANSI: KJ6D063R00

ISO: KJ6D063R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3057620
Delivery date: 3-5 days
$690.67
Products specifications
Attribute name Attribute value
General Product Information
Application Pocket Milling, Face Milling, Ramp Milling, Slot Milling, Side Milling
Shipping State Illinois
Package Size 1
Insert Application Semi Finishing, Roughing
Insert Type Positive
Made In USA No
Insert/Tool Tool
Dimensional Specifications
Tool Material Steel
Overall Len 1.5748 40.00MM
Cutter Dia 2.4800 62.99MM
Flutes/Inserts 7
Depth Of Cut Max 0.2756
Cut Dia Min 2.4800 62.99MM
Insert Size Ic 6
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TH
Max Ramp Angle 0.80°
Coolant Thru Yes
