  • INGERSOLL KJ6D050R00 Milling Cutter 90.0° 1.967 Shell Arbor 0.8661 5 Flute Coolant 0.2756 Max DOC 1.574 OAL

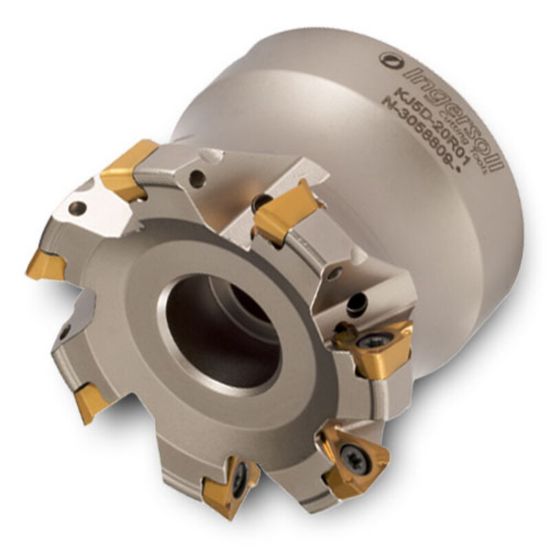

Picture of INGERSOLL KJ6D050R00 Milling Cutter 90.0° 1.967 Shell Arbor 0.8661 5 Flute Coolant 0.2756 Max DOC 1.574 OAL

INGERSOLL KJ6D050R00 Milling Cutter 90.0° 1.967 Shell Arbor 0.8661 5 Flute Coolant 0.2756 Max DOC 1.574 OAL

ANSI: KJ6D050R00

ISO: KJ6D050R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3057619
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Side Milling, Pocket Milling, Slot Milling, Face Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Insert Type Positive
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.2756
Insert Size Ic 6
Cutter Dia 1.9670 49.96MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Tool Material Steel
Overall Len 1.5748 40.00MM
Cut Dia Min 1.9690 50.01MM
Flutes/Inserts 5
Cutting & Machining Properties
Max Ramp Angle 1.00°
Insert Style TH
Insert Shape/Cutter Pocket Shape Triangle
Coolant Thru Yes
