  • INGERSOLL KJ5P160R00 Milling Cutter 90.0° 6.299 Shell Arbor 1.5748 12 Flute 0.5906 Max DOC 2.480 OAL

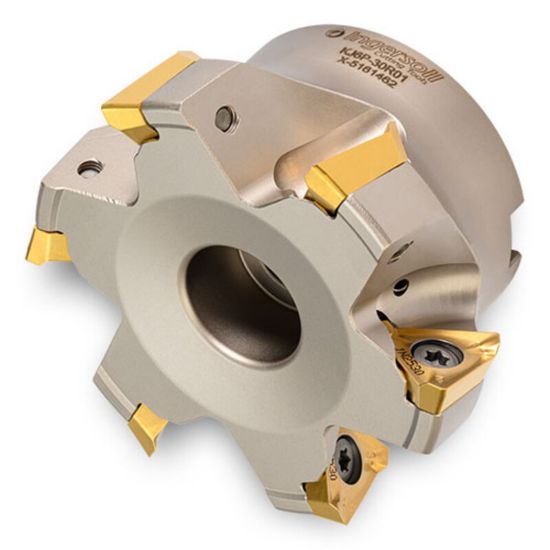

Picture of INGERSOLL KJ5P160R00 Milling Cutter 90.0° 6.299 Shell Arbor 1.5748 12 Flute 0.5906 Max DOC 2.480 OAL

INGERSOLL KJ5P160R00 Milling Cutter 90.0° 6.299 Shell Arbor 1.5748 12 Flute 0.5906 Max DOC 2.480 OAL

ANSI: KJ5P160R00

ISO: KJ5P160R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3031258
Delivery date: 3-5 days
$1,586.67
Products specifications
Attribute name Attribute value
General Product Information
Application Pocket Milling, Face Milling, Ramp Milling, Slot Milling, Side Milling
Made In USA No
Shipping State Illinois
Insert Type Positive
Package Size 1
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Insert Size Ic 13
Cutter Dia 6.2990 159.99MM
Machine Side Connection Size 1.5748 40.00MM
Overall Len 2.4803 63.00MM
Depth Of Cut Max 0.5906
Cut Dia Min 6.2990 159.99MM
Flutes/Inserts 12
Cutting & Machining Properties
Max Ramp Angle 0.60°
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TH
Coolant Thru No
