  • INGERSOLL KJ5P063R00 Milling Cutter 90.0° 2.480 Shell Arbor 0.8661 6 Flute Coolant 0.5906 Max DOC 1.574 OAL

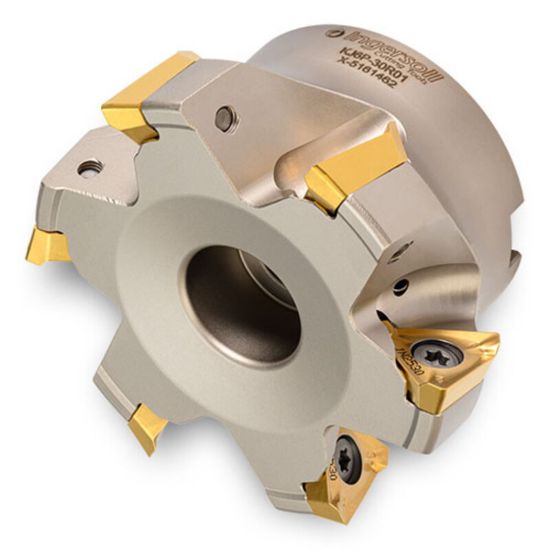

Picture of INGERSOLL KJ5P063R00 Milling Cutter 90.0° 2.480 Shell Arbor 0.8661 6 Flute Coolant 0.5906 Max DOC 1.574 OAL

INGERSOLL KJ5P063R00 Milling Cutter 90.0° 2.480 Shell Arbor 0.8661 6 Flute Coolant 0.5906 Max DOC 1.574 OAL

ANSI: KJ5P063R00

ISO: KJ5P063R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3031260
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Pocket Milling, Ramp Milling, Side Milling, Slot Milling
Insert Application Semi Finishing, Roughing
Package Size 1
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 13
Cutter Dia 2.4800 62.99MM
Flutes/Inserts 6
Depth Of Cut Max 0.5906
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Overall Len 1.5748 40.00MM
Tool Material Steel
Cut Dia Min 2.4800 62.99MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Max Ramp Angle 1.70°
Coolant Thru Yes
Insert Style TH
