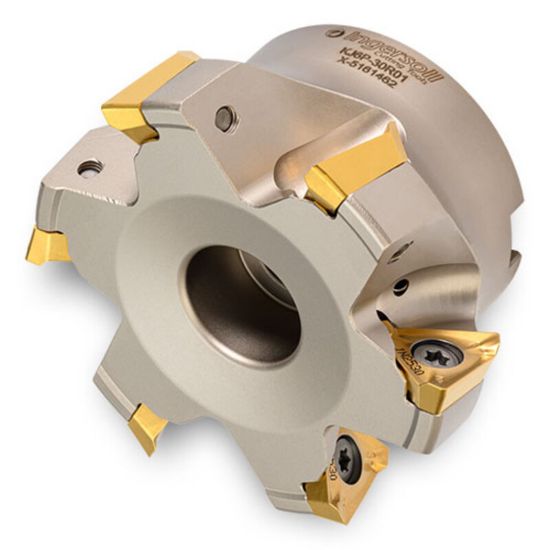

Picture of INGERSOLL KJ5P-60R01 Milling Cutter 90.0° 6.000 Shell Arbor 1.5000 12 Flute 0.57 Max DOC 2.000 OAL

INGERSOLL KJ5P-60R01 Milling Cutter 90.0° 6.000 Shell Arbor 1.5000 12 Flute 0.57 Max DOC 2.000 OAL

ANSI: KJ5P-60R01

ISO: KJ5P-60R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3031443
Delivery date: 3-5 days
$1,428.00

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Slot Milling, Pocket Milling, Ramp Milling, Side Milling
Insert Application Semi Finishing, Roughing
Package Size 1
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 13
Cutter Dia 6.0000 152.40MM
Machine Side Connection Size 1.5000 38.10MM
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Tool Material Steel
Depth Of Cut Max 0.5700
Cut Dia Min 6.0000 152.40MM
Flutes/Inserts 12
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Coolant Thru No
Max Ramp Angle 0.60°
Insert Style TH
