  • INGERSOLL KJ5P-30R01 Milling Cutter 90.0° 3.000 Shell Arbor 1.0000 7 Flute Coolant 0.57 Max DOC 1.750 OAL

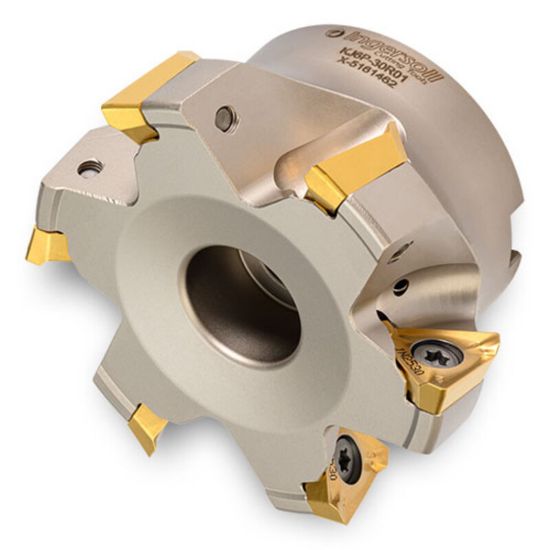

Picture of INGERSOLL KJ5P-30R01 Milling Cutter 90.0° 3.000 Shell Arbor 1.0000 7 Flute Coolant 0.57 Max DOC 1.750 OAL

INGERSOLL KJ5P-30R01 Milling Cutter 90.0° 3.000 Shell Arbor 1.0000 7 Flute Coolant 0.57 Max DOC 1.750 OAL

ANSI: KJ5P-30R01

ISO: KJ5P-30R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2926830
Delivery date: 3-5 days
$848.40

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Side Milling, Pocket Milling, Face Milling, Slot Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Cutter Dia 3.0000 76.20MM
Overall Len 1.7500 44.45MM
Insert Size Ic 13
Flutes/Inserts 7
Depth Of Cut Max 0.5700
Machine Side Connection Size 1.0000 25.40MM
Cut Dia Min 3.0000 76.20MM
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Cutting & Machining Properties
Insert Style TH
Max Ramp Angle 1.00°
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Triangle
