  • INGERSOLL KJ5G050R00 Milling Cutter 90.0° 1.967 Shell Arbor 0.8661 5 Flute Coolant 0.4331 Max DOC 1.574 OAL

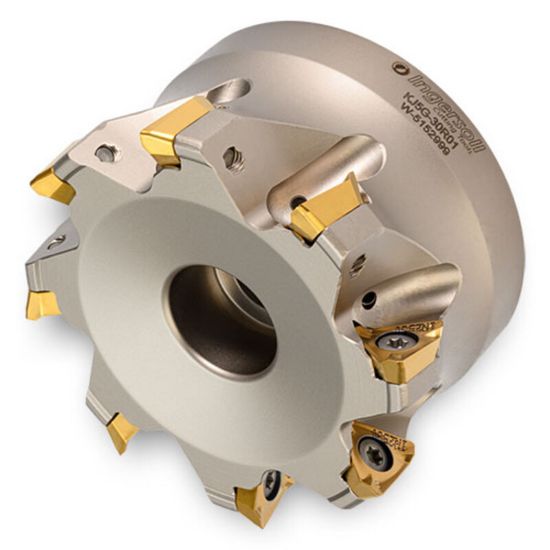

Picture of INGERSOLL KJ5G050R00 Milling Cutter 90.0° 1.967 Shell Arbor 0.8661 5 Flute Coolant 0.4331 Max DOC 1.574 OAL

INGERSOLL KJ5G050R00 Milling Cutter 90.0° 1.967 Shell Arbor 0.8661 5 Flute Coolant 0.4331 Max DOC 1.574 OAL

ANSI: KJ5G050R00

ISO: KJ5G050R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3031307
Delivery date: 3-5 days
$587.07
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Slot Milling, Pocket Milling, Ramp Milling, Side Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Package Size 1
Dimensional Specifications
Cutter Dia 1.9670 49.96MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Cut Dia Min 1.9690 50.01MM
Depth Of Cut Max 0.4331
Tool Material Steel
Overall Len 1.5748 40.00MM
Flutes/Inserts 5
Insert Size Ic 10
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Max Ramp Angle 1.50°
Coolant Thru Yes
Insert Style TH
