  • INGERSOLL KJ5G-30R01 Milling Cutter 90.0° 3.000 Shell Arbor 1.0000 8 Flute Coolant 0.41 Max DOC 1.750 OAL

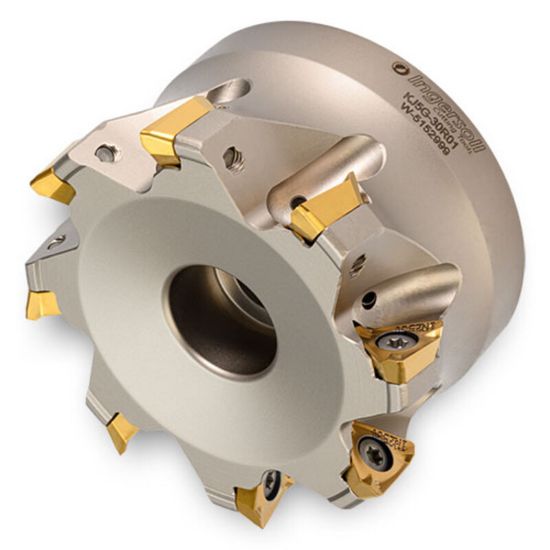

Picture of INGERSOLL KJ5G-30R01 Milling Cutter 90.0° 3.000 Shell Arbor 1.0000 8 Flute Coolant 0.41 Max DOC 1.750 OAL

INGERSOLL KJ5G-30R01 Milling Cutter 90.0° 3.000 Shell Arbor 1.0000 8 Flute Coolant 0.41 Max DOC 1.750 OAL

ANSI: KJ5G-30R01

ISO: KJ5G-30R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3031434
Delivery date: 3-5 days
$879.20

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Application Ramp Milling, Side Milling, Pocket Milling, Face Milling, Slot Milling
Package Size 1
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Insert Size Ic 10
Cut Dia Min 3.0000 76.20MM
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.4100
Cutter Dia 3.0000 76.20MM
Overall Len 1.7500 44.45MM
Flutes/Inserts 8
Tool Material Steel
Machine Side Connection Size 1.0000 25.40MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Style TH
Max Ramp Angle 0.80°
Insert Shape/Cutter Pocket Shape Triangle
