  • INGERSOLL KJ5G-25R01 Milling Cutter 90.0° 2.500 Shell Arbor 0.7500 6 Flute Coolant 0.41 Max DOC 1.570 OAL

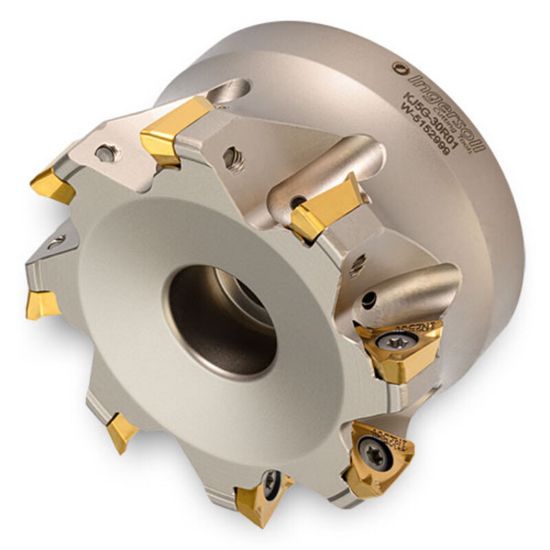

Picture of INGERSOLL KJ5G-25R01 Milling Cutter 90.0° 2.500 Shell Arbor 0.7500 6 Flute Coolant 0.41 Max DOC 1.570 OAL

INGERSOLL KJ5G-25R01 Milling Cutter 90.0° 2.500 Shell Arbor 0.7500 6 Flute Coolant 0.41 Max DOC 1.570 OAL

ANSI: KJ5G-25R01

ISO: KJ5G-25R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3031432
Delivery date: 3-5 days
$690.67

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Pocket Milling, Ramp Milling, Slot Milling, Side Milling
Package Size 1
Shipping State Illinois
Insert Type Positive
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Made In USA No
Dimensional Specifications
Tool Material Steel
Depth Of Cut Max 0.4100
Cut Dia Min 2.5000 63.50MM - 2-1/2
Flutes/Inserts 6
Insert Size Ic 10
Cutter Dia 2.5000 63.50MM - 2-1/2
Machine Side Connection Size 0.7500 19.05MM
Overall Len 1.5700 39.88MM
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TH
Coolant Thru Yes
Max Ramp Angle 1.10°
