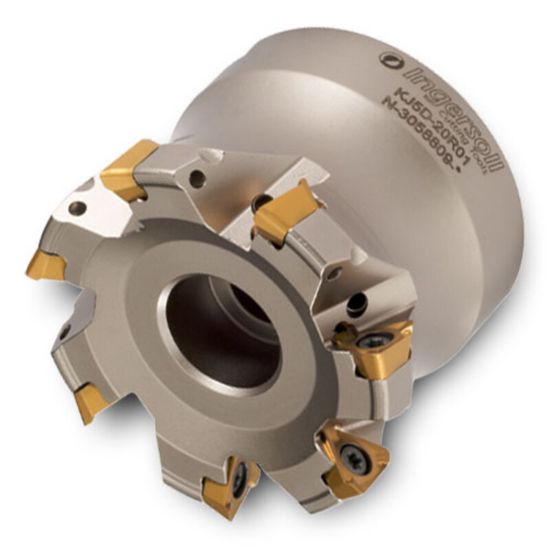

INGERSOLL KJ5D063R00 Milling Cutter 90.0° 2.480 Shell Arbor 0.8661 9 Flute Coolant 0.2756 Max DOC 1.574 OAL

ANSI: KJ5D063R00

ISO: KJ5D063R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3031312
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert/Tool Tool
Application Pocket Milling, Face Milling, Ramp Milling, Side Milling, Slot Milling
Insert Type Positive
Insert Application Semi Finishing, Roughing
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cutter Dia 2.4800 62.99MM
Tool Material Steel
Insert Size Ic 10
Depth Of Cut Max 0.2756
Cut Dia Min 2.4800 62.99MM
Flutes/Inserts 9
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Overall Len 1.5748 40.00MM
Cutting & Machining Properties
Max Ramp Angle 0.80°
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TH
Coolant Thru Yes
