  • INGERSOLL KJ5D050R00 Milling Cutter 90.0° 1.967 Shell Arbor 0.8661 7 Flute Coolant 0.2756 Max DOC 1.574 OAL

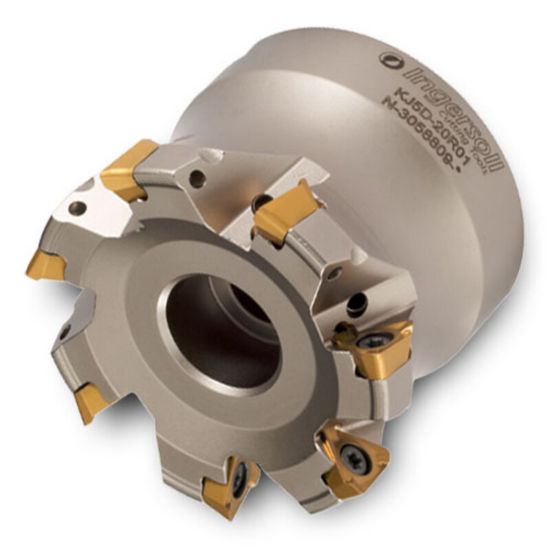

Picture of INGERSOLL KJ5D050R00 Milling Cutter 90.0° 1.967 Shell Arbor 0.8661 7 Flute Coolant 0.2756 Max DOC 1.574 OAL

INGERSOLL KJ5D050R00 Milling Cutter 90.0° 1.967 Shell Arbor 0.8661 7 Flute Coolant 0.2756 Max DOC 1.574 OAL

ANSI: KJ5D050R00

ISO: KJ5D050R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3031301
Delivery date: 3-5 days
$655.20
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Semi Finishing, Roughing
Application Side Milling, Ramp Milling, Slot Milling, Face Milling, Pocket Milling
Insert Type Positive
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.2756
Tool Material Steel
Cut Dia Min 1.9690 50.01MM
Flutes/Inserts 7
Cutter Dia 1.9670 49.96MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Overall Len 1.5748 40.00MM
Insert Size Ic 6
Cutting & Machining Properties
Max Ramp Angle 1.00°
Insert Style TH
Insert Shape/Cutter Pocket Shape Triangle
Coolant Thru Yes
