  • INGERSOLL KJ5D-15R01 Milling Cutter 90.0° 1.500 Shell Arbor 0.5000 6 Flute Coolant 0.275 Max DOC 1.570 OAL

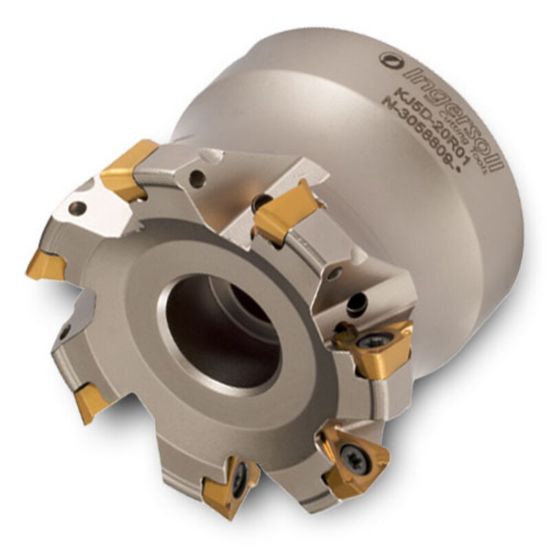

Picture of INGERSOLL KJ5D-15R01 Milling Cutter 90.0° 1.500 Shell Arbor 0.5000 6 Flute Coolant 0.275 Max DOC 1.570 OAL

INGERSOLL KJ5D-15R01 Milling Cutter 90.0° 1.500 Shell Arbor 0.5000 6 Flute Coolant 0.275 Max DOC 1.570 OAL

ANSI: KJ5D-15R01

ISO: KJ5D-15R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3031428
Delivery date: 3-5 days
$578.67

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Application Face Milling, Ramp Milling, Slot Milling, Side Milling, Pocket Milling
Package Size 1
Insert Type Positive
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 6
Depth Of Cut Max 0.2750
Overall Len 1.5700 39.88MM
Cut Dia Min 1.5000 38.10MM - 1-1/2
Machine Side Connection Size 0.5000 12.70MM
Cutter Dia 1.5000 38.10MM - 1-1/2
Flutes/Inserts 6
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Max Ramp Angle 1.30°
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TH
