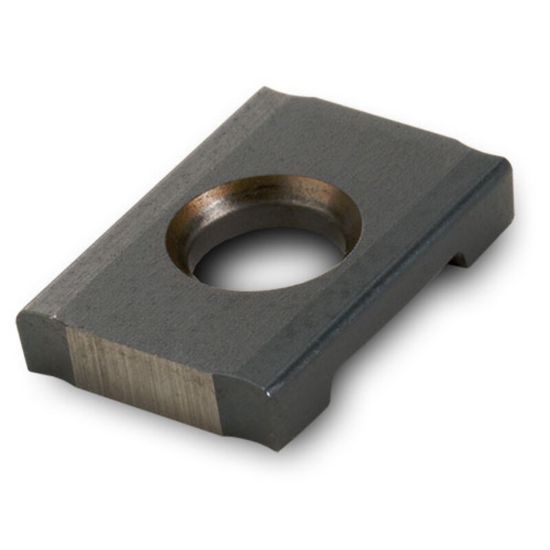

INGERSOLL IEE312-001 IN2515 Milling Insert Rectangle 0.015 TiAIN + TiN ThinMax Insert

ANSI: IEE312-001 IN2515

ISO: IEE312-001 IN2515

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING5832344
Delivery date: 3-5 days
$19.76

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

HARD GRADE FOR STEEL,STAINLESS,IRON

Products specifications
Attribute name Attribute value
General Product Information
Coating TiAIN + TiN
Package Size 10
Application Milling Insert
Shipping State Illinois
Insert/Tool Insert
Insert Type Neutral
Grade IN2515
Insert Application Semi Finishing, Roughing
Made In USA No
Dimensional Specifications
Corner Radius 0.0150 0.38MM
Cut Rating >50HRC Steel, Ductile Iron, Gray Iron, Graphite
Insert Size Ic 31
Cutting & Machining Properties
Cutting Edge Mat Carbide
Insert Style IE
Insert Shape/Cutter Pocket Shape Rectagonal
