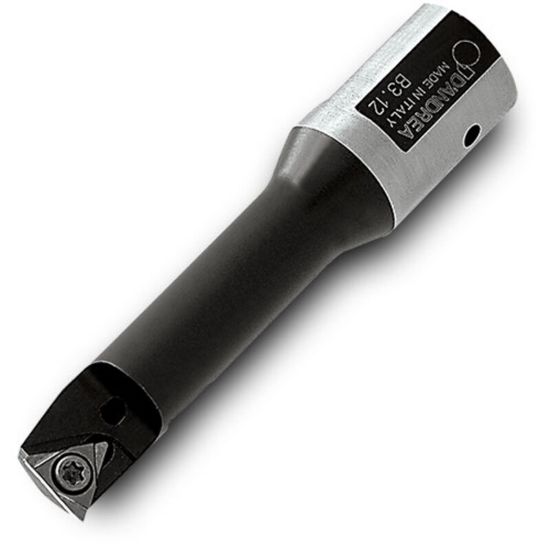

Picture of INGERSOLL Hole Making Mill Boring Boring Head Boring Bar Boring Bar 0.629 Steel

INGERSOLL Hole Making Mill Boring Boring Head Boring Bar Boring Bar 0.629 Steel

ISO: B3.12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3240055
Delivery date: 3-5 days
$151.80

Features And Benefits

Boring Bar (steel) Dia. Range: .236" - 1.18" Dia. Range: 6-30 mm D’Andrea MHD compatible

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Insert Type Positive
Application Mill Boring
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Type Boring Bar
Cut Dia Min 0.4720 11.99MM
Machine Side Connection Size 0.6299 16.00MM
Insert Size Ic 09 "73"
Shank/Pilot Dia 0.6299 16.00MM
Neck Length 1.6530 41.99MM
Tool Over Hang 1.8890
Cut Dia Max 0.5510 14.00MM
Tool Material Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TP
