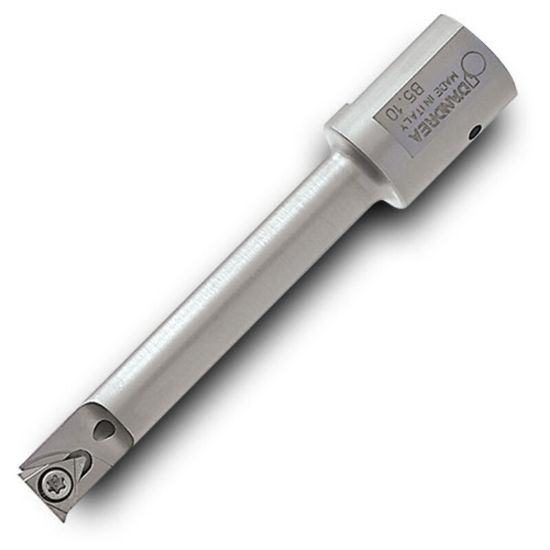

Picture of INGERSOLL Hole Making Mill Boring Boring Head Boring Bar Boring Bar 0.629 Heavy Metal

INGERSOLL Hole Making Mill Boring Boring Head Boring Bar Boring Bar 0.629 Heavy Metal

ISO: B5.10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3240062
Delivery date: 3-5 days
$283.80

Features And Benefits

Boring Bar (heavy metal) Ø.236-.708" Ø6-18 mm D’Andrea MHD compatible

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Insert Type Positive
Package Size 1
Insert/Tool Tool
Application Mill Boring
Dimensional Specifications
Machine Side Connection Type Boring Bar
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Cut Dia Min 0.3940 10.01MM
Cut Dia Max 0.4720 11.99MM
Insert Size Ic 09 "73"
Neck Length 2.3620 59.99MM
Tool Material Heavy Metal
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TP
