Picture of INGERSOLL Hole Making Mill Boring Boring Head Boring Bar Boring Bar 0.629 Carbide

INGERSOLL Hole Making Mill Boring Boring Head Boring Bar Boring Bar 0.629 Carbide

ISO: B8.08

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3240173
Delivery date: 3-5 days
$603.53

Features And Benefits

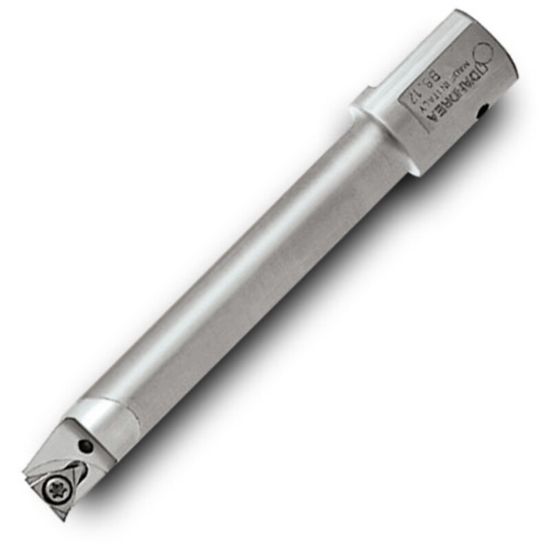

Boring Bar (carbide) Ø.236-.708" Ø6-18 mm D’Andrea MHD compatible

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Application Mill Boring
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Machine Side Connection Size 0.6299 16.00MM
Machine Side Connection Type Boring Bar
Shank/Pilot Dia 0.6299 16.00MM
Insert Size Ic 02 "1.2"
Neck Length 2.3620 59.99MM
Tool Material Carbide
Cut Dia Min 0.3150 8.00MM
Cut Dia Max 0.3940 10.01MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Trigon
Insert Style WC
