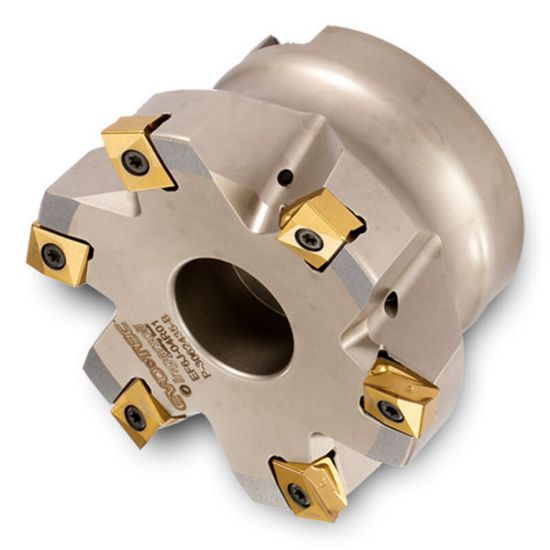

Picture of INGERSOLL EF6J-06R01 Milling Cutter 6.000 Shell Arbor 1.5000 9 Flute Coolant 0.04 Max DOC 2.500 OAL

INGERSOLL EF6J-06R01 Milling Cutter 6.000 Shell Arbor 1.5000 9 Flute Coolant 0.04 Max DOC 2.500 OAL

ANSI: EF6J-06R01

ISO: EF6J-06R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3030814
Delivery date: 3-5 days
$1,325.33

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing
Application Face Milling, Micro Finishing
Package Size 1
Insert Type Negative
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Cut Dia Min 5.2340 132.94MM
Flutes/Inserts 9
Cut Dia Max 6.0000 152.40MM
Overall Len 2.5000 63.50MM
Insert Size Ic 32
Cutter Dia 6.0000 152.40MM
Machine Side Connection Size 1.5000 38.10MM
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.0400
Tool Material Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Rectagonal
Coolant Thru Yes
Insert Style DG
