  • INGERSOLL DW2H-25R02 Milling Cutter Button Cutter 2.500 Shell Arbor 0.7500 4 Flute 0.25 Max DOC 1.570 OAL

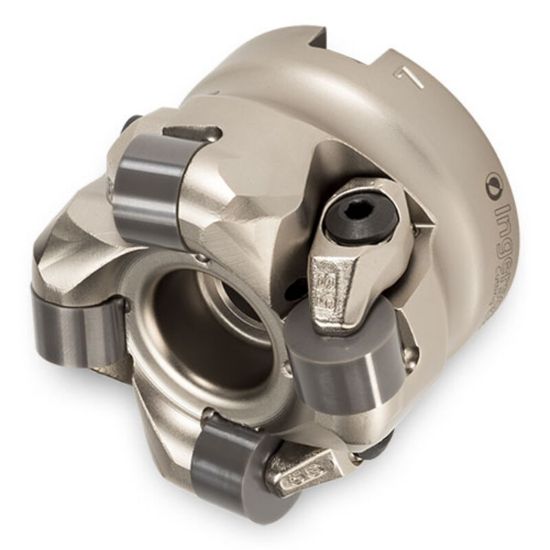

Picture of INGERSOLL DW2H-25R02 Milling Cutter Button Cutter 2.500 Shell Arbor 0.7500 4 Flute 0.25 Max DOC 1.570 OAL

INGERSOLL DW2H-25R02 Milling Cutter Button Cutter 2.500 Shell Arbor 0.7500 4 Flute 0.25 Max DOC 1.570 OAL

ANSI: DW2H-25R02

ISO: DW2H-25R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6322759
Delivery date: 3-5 days
$610.40
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Round Milling, Ramp Milling, Face Milling
Shipping State Illinois
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.2500
Cut Dia Min 2.0000 50.80MM
Cutter Dia 2.5000 63.50MM - 2-1/2
Machine Side Connection Size 0.7500 19.05MM
Cut Dia Max 2.5000 63.50MM - 2-1/2
Tool Material Steel
Overall Len 1.5700 39.88MM
Insert Size Ic 12
Machine Side Connection Type Face Mill/Shell Mill
Flutes/Inserts 4
Cutting & Machining Properties
Insert Style RN
Coolant Thru No
Insert Shape/Cutter Pocket Shape Round
Max Ramp Angle 0.20°
