  • INGERSOLL DW2H-20R02 Milling Cutter Button Cutter 2.000 Shell Arbor 0.7500 3 Flute 0.25 Max DOC 1.570 OAL

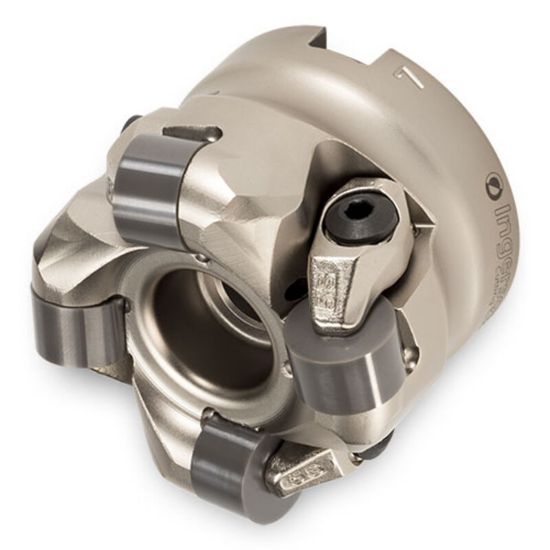

Picture of INGERSOLL DW2H-20R02 Milling Cutter Button Cutter 2.000 Shell Arbor 0.7500 3 Flute 0.25 Max DOC 1.570 OAL

INGERSOLL DW2H-20R02 Milling Cutter Button Cutter 2.000 Shell Arbor 0.7500 3 Flute 0.25 Max DOC 1.570 OAL

ANSI: DW2H-20R02

ISO: DW2H-20R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6322757
Delivery date: 3-5 days
$490.00
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Application Round Milling, Ramp Milling, Pocket Milling, Face Milling
Package Size 1
Insert/Tool Tool
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 12
Flutes/Inserts 3
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Overall Len 1.5700 39.88MM
Cut Dia Min 1.5000 38.10MM - 1-1/2
Depth Of Cut Max 0.2500
Cutter Dia 2.0000 50.80MM
Cut Dia Max 2.0000 50.80MM
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Coolant Thru No
Insert Shape/Cutter Pocket Shape Round
Insert Style RN
Max Ramp Angle 0.20°
