  • INGERSOLL DW1H-25R02 Milling Cutter Button Cutter 2.500 Shell Arbor 0.7500 5 Flute 0.25 Max DOC 1.570 OAL

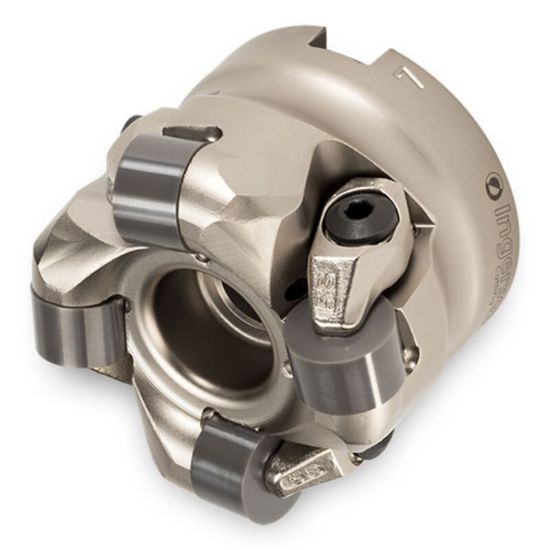

Picture of INGERSOLL DW1H-25R02 Milling Cutter Button Cutter 2.500 Shell Arbor 0.7500 5 Flute 0.25 Max DOC 1.570 OAL

INGERSOLL DW1H-25R02 Milling Cutter Button Cutter 2.500 Shell Arbor 0.7500 5 Flute 0.25 Max DOC 1.570 OAL

ANSI: DW1H-25R02

ISO: DW1H-25R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6322760
Delivery date: 3-5 days
$633.73
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Application Pocket Milling, Ramp Milling, Face Milling, Round Milling
Shipping State Illinois
Package Size 1
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Made In USA No
Dimensional Specifications
Cut Dia Max 2.5000 63.50MM - 2-1/2
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Cut Dia Min 2.0000 50.80MM
Depth Of Cut Max 0.2500
Cutter Dia 2.5000 63.50MM - 2-1/2
Machine Side Connection Size 0.7500 19.05MM
Overall Len 1.5700 39.88MM
Flutes/Inserts 5
Insert Size Ic 12
Cutting & Machining Properties
Insert Style RN
Max Ramp Angle 0.20°
Insert Shape/Cutter Pocket Shape Round
Coolant Thru No
