  • INGERSOLL DW1H-20R02 Milling Cutter Button Cutter 2.000 Shell Arbor 0.7500 4 Flute 0.25 Max DOC 1.570 OAL

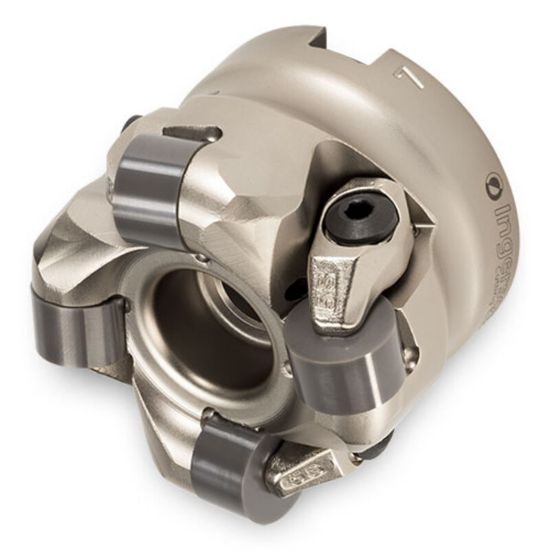

Picture of INGERSOLL DW1H-20R02 Milling Cutter Button Cutter 2.000 Shell Arbor 0.7500 4 Flute 0.25 Max DOC 1.570 OAL

INGERSOLL DW1H-20R02 Milling Cutter Button Cutter 2.000 Shell Arbor 0.7500 4 Flute 0.25 Max DOC 1.570 OAL

ANSI: DW1H-20R02

ISO: DW1H-20R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6322758
Delivery date: 3-5 days
$512.40

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Face Milling, Round Milling, Pocket Milling
Package Size 1
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Depth Of Cut Max 0.2500
Cut Dia Max 2.0000 50.80MM
Insert Size Ic 12
Cut Dia Min 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Face Mill/Shell Mill
Flutes/Inserts 4
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Overall Len 1.5700 39.88MM
Cutter Dia 2.0000 50.80MM
Cutting & Machining Properties
Insert Style RN
Coolant Thru No
Insert Shape/Cutter Pocket Shape Round
Max Ramp Angle 0.20°
