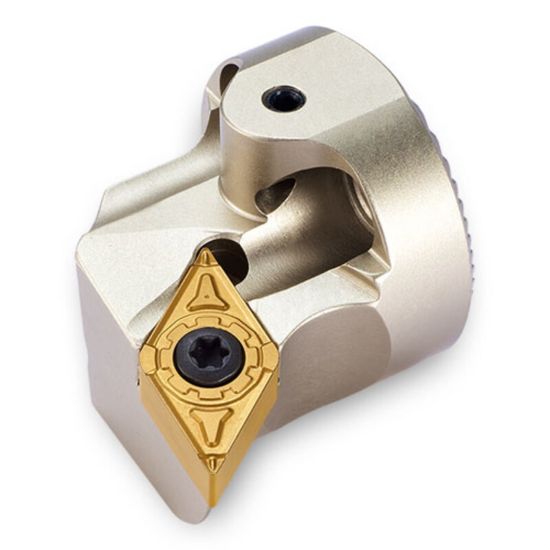

Picture of INGERSOLL DTC-D32-SDUNL-1305 Turning Boring Bar 55.0° Modular Tools Adapter 1.259 Steel

INGERSOLL DTC-D32-SDUNL-1305 Turning Boring Bar 55.0° Modular Tools Adapter 1.259 Steel

ANSI: DTC-D32-SDUNL-1305

ISO: DTC-D32-SDUNL-1305

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6312999
Delivery date: 3-5 days
$380.80

Features And Benefits

Screw held-boring head for internal turning Accepts negative 55° rhombic (Gold Rhino) inserts Coolant thru

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Made In USA No
Insert Application General Purpose
Shipping State Illinois
Application Int.Turning
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Min Bore 1.5750
Machine Side Connection Size 1.2598 32.00MM
Tool Material Steel
Machine Side Connection Type Adapter
Lead Angle 93.5°
Insert Size Ic 13 "3.5"
Overall Len 0.8661 22.00MM
Clearance Angle 30.0°
Cutting & Machining Properties
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape 55.0°
Hand R/L Left
Insert Style DN
Coolant Thru Yes
