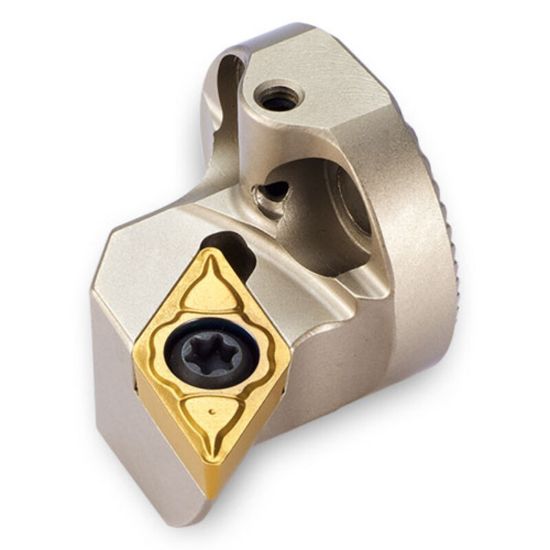

Picture of INGERSOLL DTC-D32-SDUCL-11 Turning Boring Bar 55.0° Modular Tools Adapter 1.259 Steel

INGERSOLL DTC-D32-SDUCL-11 Turning Boring Bar 55.0° Modular Tools Adapter 1.259 Steel

ANSI: DTC-D32-SDUCL-11

ISO: DTC-D32-SDUCL-11

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6312596
Delivery date: 3-5 days
$380.80

Features And Benefits

Screw held-boring head for internal turning Accepts positive 7° clearance 55° rhombic inserts Coolant thru (except DTC-D16 size)

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Int.Turning
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Insert Type Positive
Package Size 1
Dimensional Specifications
Clearance Angle 30.0°
Tool Material Steel
Machine Side Connection Type Adapter
Machine Side Connection Size 1.2598 32.00MM
Lead Angle 93°
Min Bore 1.5750
Insert Size Ic 11 "32"
Overall Len 0.8661 22.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DC
Coolant Thru Yes
Inter/Extern Internal
Hand R/L Left
