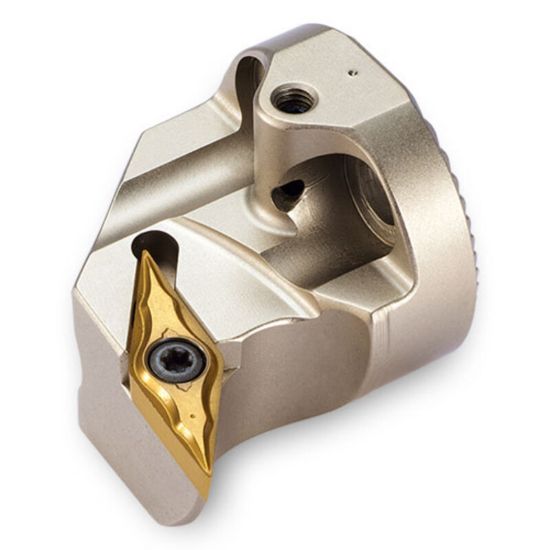

Picture of INGERSOLL DTC-D20-SVUBR-11 Turning Boring Bar 35.0° Modular Tools Adapter 0.787 Steel

INGERSOLL DTC-D20-SVUBR-11 Turning Boring Bar 35.0° Modular Tools Adapter 0.787 Steel

ANSI: DTC-D20-SVUBR-11

ISO: DTC-D20-SVUBR-11

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6312599
Delivery date: 3-5 days
$347.20

Features And Benefits

Screw held-boring head for internal turning Accepts positive 5° clearance 35° rhombic inserts Coolant thru

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Shipping State Illinois
Insert Type Negative
Made In USA No
Package Size 1
Application Int.Turning
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 11 "22"
Tool Material Steel
Clearance Angle 50.0°
Min Bore 1.0630
Machine Side Connection Type Adapter
Lead Angle 93°
Machine Side Connection Size 0.7874 20.00MM
Overall Len 0.7870 19.99MM
Cutting & Machining Properties
Insert Style VB
Insert Shape/Cutter Pocket Shape 35.0°
Hand R/L Right
Inter/Extern Internal
Coolant Thru Yes
