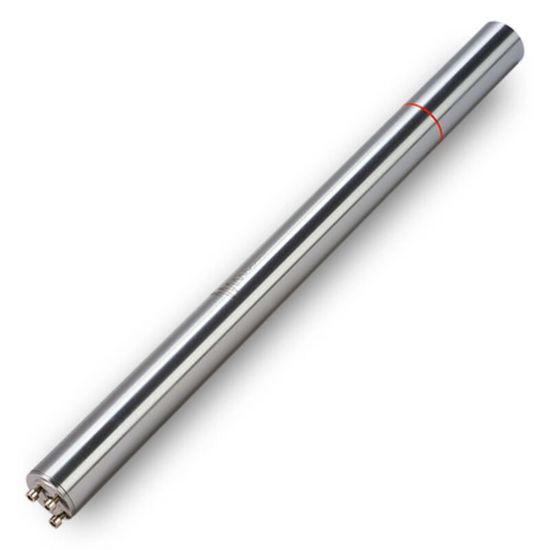

Picture of INGERSOLL DTA-D1.00-10D-C Turning Boring Bar Shank Modular Tools Boring Bar 1.000 Steel

INGERSOLL DTA-D1.00-10D-C Turning Boring Bar Shank Modular Tools Boring Bar 1.000 Steel

ANSI: DTA-D1.00-10D-C

ISO: DTA-D1.00-10D-C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6255470
Delivery date: 3-5 days
$2,490.00

Features And Benefits

Anti-Vibration Replaceable Head Boring Bars L:D Ratio - 10:1 Coolant Thru

Products specifications
Attribute name Attribute value
General Product Information
Application Int.Threading, Int.Turning, Int.Grooving
Insert/Tool Tool
Insert Application General Purpose
Shipping State Illinois
Package Size 1
Made In USA No
Dimensional Specifications
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Depth Of Cut Max 0.3620
Tool Material Steel
Neck Dia 0.9840
Machine Side Connection Type Boring Bar
Overall Len 13.2100 335.53MM
Cutting & Machining Properties
Coolant Thru Yes
Inter/Extern Internal
