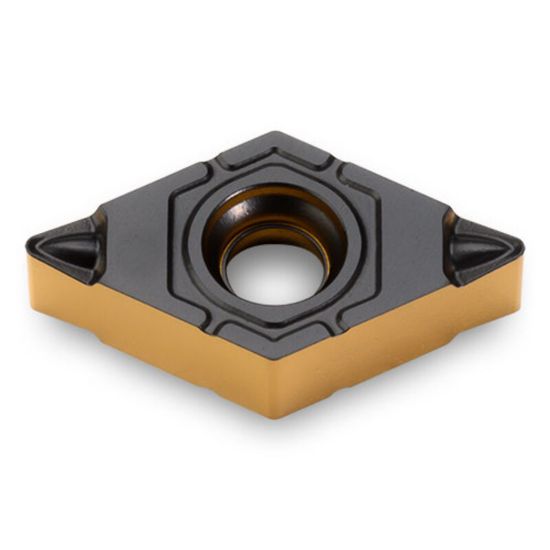

INGERSOLL DNMX2.221FGP PV3020 Turning Insert 55.0° TiN 0.016 Corner Radius

ANSI: DNMX2.221FGP PV3020

ISO: DNMX080304FGP PV3020

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6324702
Delivery date: 3-5 days
$9.65

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

PVD coated Cermet grade with excellent wear resistance and low coefficient of friction for high speed finish turning of steels, stainless steels and cast irons with long tool life

Products specifications
Attribute name Attribute value
General Product Information
Grade PV3020
Insert Application Finishing
Coating TiN
Package Size 10
Insert Type Negative
Application Turning Insert
Made In USA No
Shipping State Illinois
Insert/Tool Insert
Dimensional Specifications
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Insert Size Ic 08 "2.2"
Corner Radius 0.0160 0.41MM
Cutting & Machining Properties
Cutting Edge Mat Cermet
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DN
