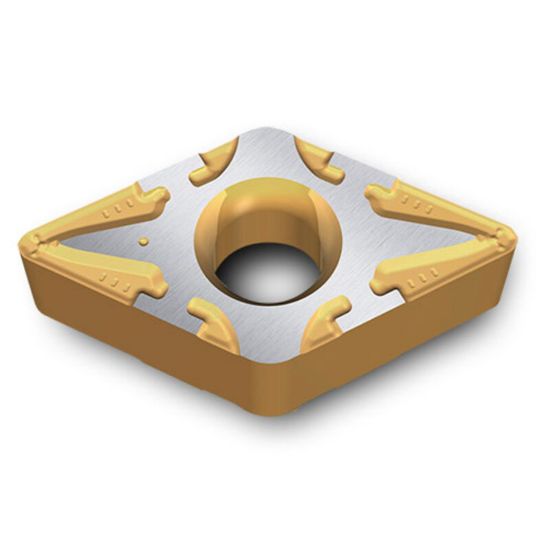

INGERSOLL DNMG3.53.51WA PV3010 Turning Insert 55.0° TiN 0.016 Corner Radius

ANSI: DNMG3.53.51WA PV3010

ISO: DNMG130504WA PV3010

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6140199
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

PVD coated Cermet grade with excellent wear resistance and low coefficient of friction for high speed finish turning of steels, stainless steels and cast irons with long tool life

Products specifications
Attribute name Attribute value
General Product Information
Application Turning Insert
Package Size 10
Insert Application Finishing
Insert/Tool Insert
Coating TiN
Insert Type Negative
Grade PV3010
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Insert Size Ic 13 "3.5"
Corner Radius 0.0160 0.41MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DN
Cutting Edge Mat Cermet
