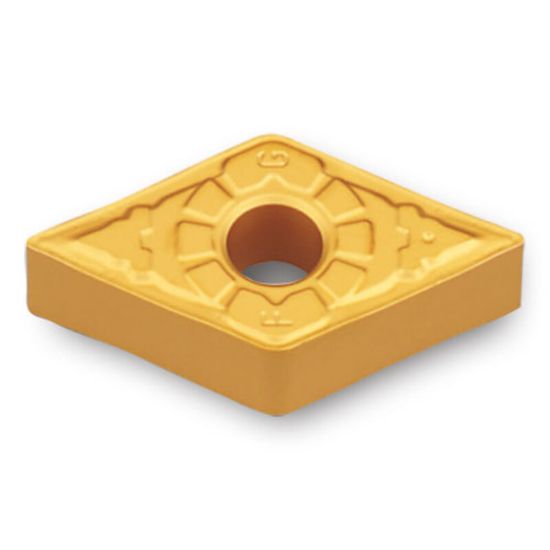

INGERSOLL DNMG331FG CT3000 Turning Insert 55.0° 0.016 Corner Radius

ANSI: DNMG331FG CT3000

ISO: DNMG110404FG CT3000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING5780221
Delivery date: 3-5 days
$8.21

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

Cermet grade for turning, grooving & parting of alloy steels & stainless steels with high surface quality and long tool life due to high wear resistance and low coefficient of friction

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Application Turning Insert
Made In USA No
Package Size 10
Insert Application Finishing
Insert/Tool Insert
Grade CT3000
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 11 "33"
Corner Radius 0.0160 0.41MM
Cut Rating <48HRC Steel, Stainless Steel
Cutting & Machining Properties
Insert Style DN
Cutting Edge Mat Cermet
Insert Shape/Cutter Pocket Shape 55.0°
